Modern Style 4 Inch Brushed Stainless Steel Flap Anti-odor Floor Drain Washroom for Kitchen and Shower

Product Introduction

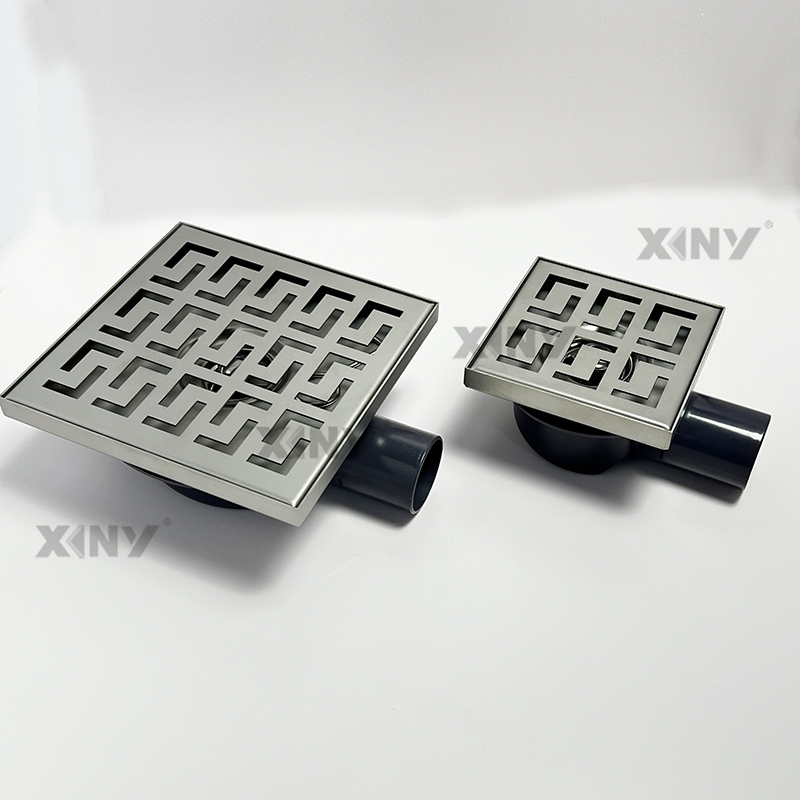

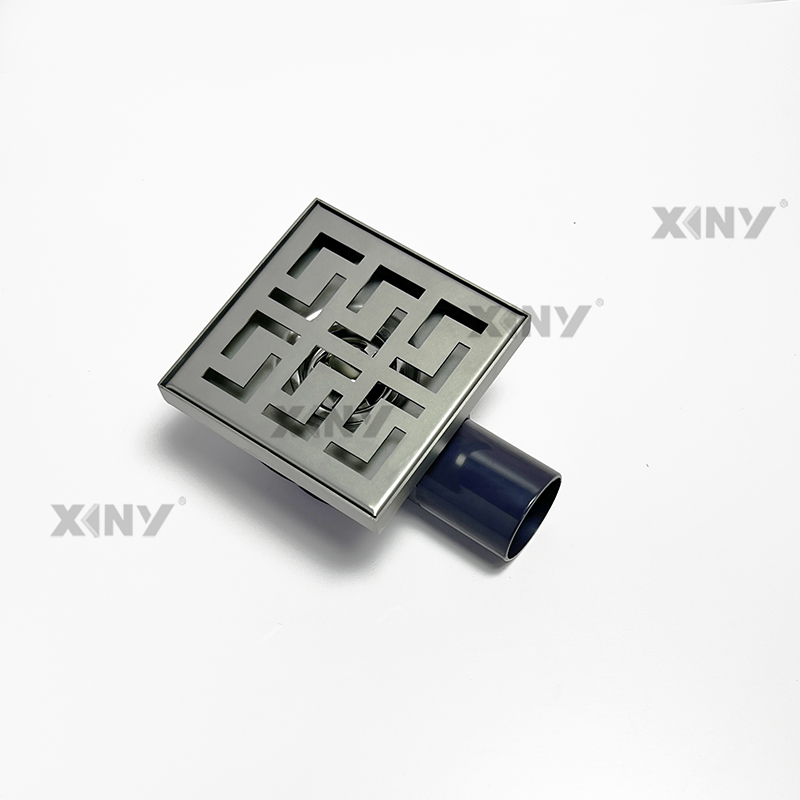

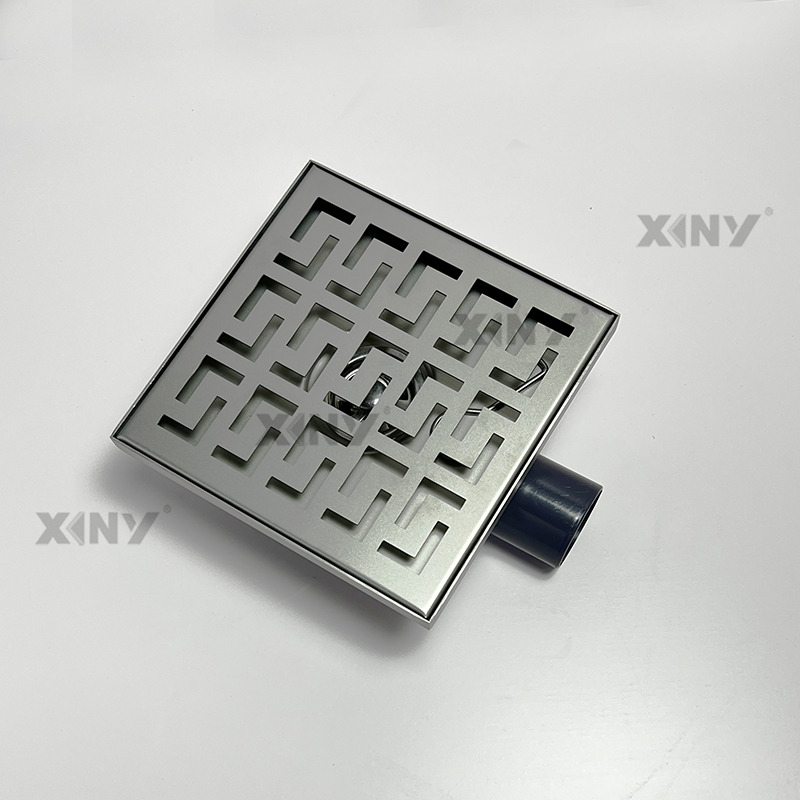

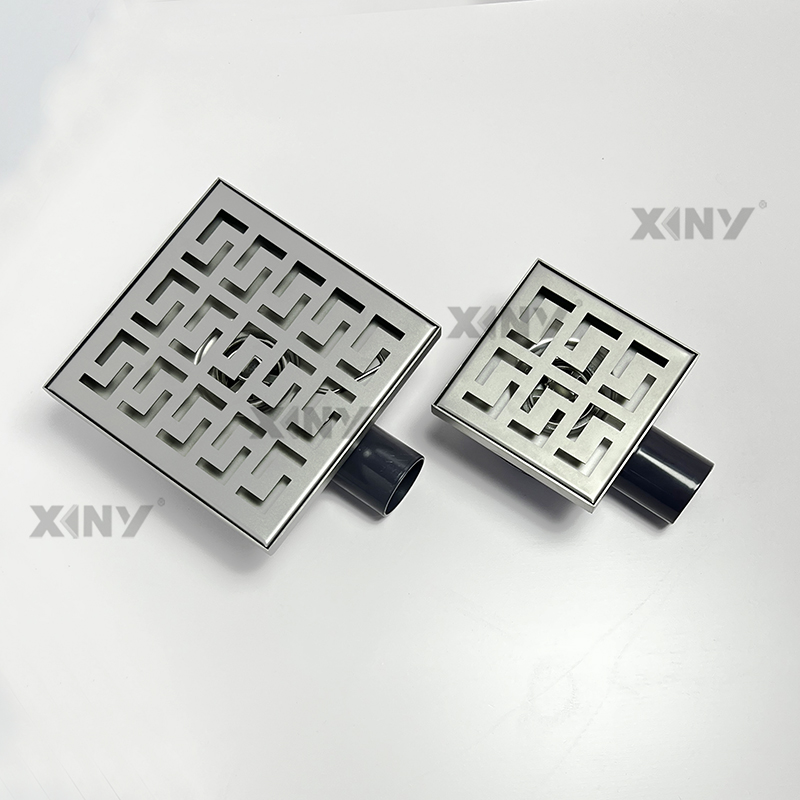

This floor drain is primarily constructed from stainless steel and features a plastic base with a 360-degree adjustable drainage direction, combining durability and flexibility. The product is available in multiple sizes, including 10x10cm, 12x12cm, 15x15cm, and 20x20cm, allowing customers to choose the size that best fits their needs.

In addition to the standard patterns we offer, the pattern on the cover can also be customized according to the customer’s specific requirements, perfectly matching different interior styles and personalized preferences.

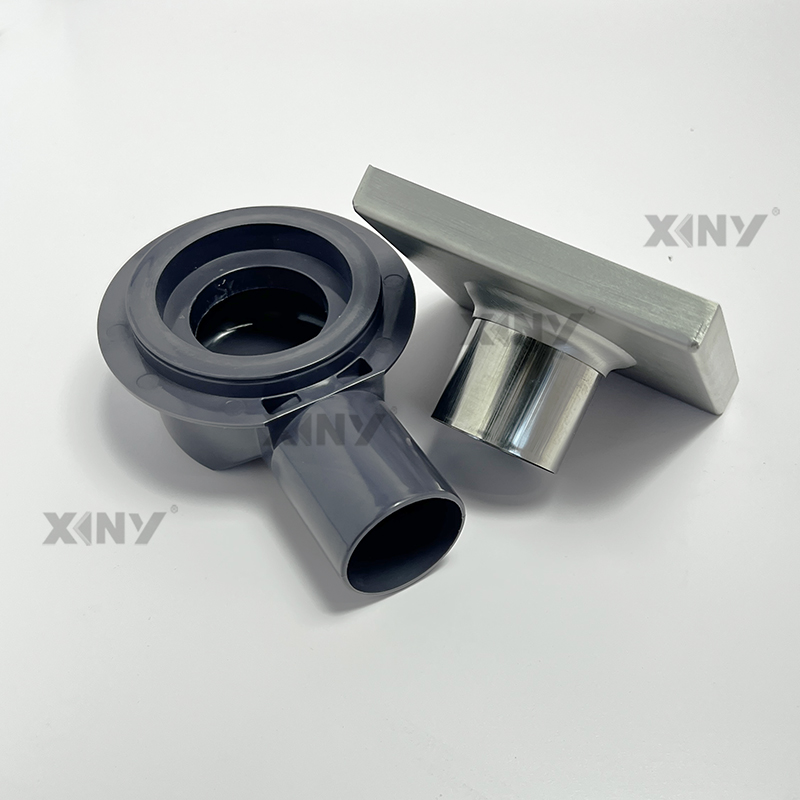

The standout feature of this floor drain is its horizontal drainage design. To better meet this requirement, we’ve added a downward drainage outlet pipe at the bottom of the drain, paired with a plastic base of our own design that allows for 360-degree adjustable drainage direction. This innovative design makes installation more flexible, enabling customers to adjust the drainage angle freely based on the requirements of their installation site, enhancing drainage efficiency and ease of use.

Features

Specifications and Displacement:

The square floor drain is available in sizes 10x10cm, 12x12cm, 15x15cm, and 20x20cm, offering options to meet various drainage needs. The standard drainage outlet diameter is 40mm. The high displacement design effectively removes residual moisture from the bottom, ensuring smooth drainage.

Material and Process:

This floor drain is made from SS201 and SUS304 stainless steel, with a thickened brushed nickel panel that enhances both its durability and aesthetic appeal. The drain is manufactured using a special production process to ensure excellent corrosion and rust resistance, making it ideal for use in wet environments.

Areas of Application:

The high displacement design makes this shower floor drain suitable for bathrooms, kitchens, garages, swimming pools, basements, and other areas where drainage is required. It is capable of handling high-volume water flow effectively.

Cleaning and Maintenance:

After a period of use, the panel can be easily opened, allowing for the removal of the filter mesh. Simply wash the mesh with water for quick and easy cleaning, ensuring the drain maintains optimal drainage performance.

Description of Accessories:

The panel of the floor drain can be opened using hooks on both sides. The filter mesh effectively traps hair and particulate impurities, preventing blockages and ensuring long-term smooth drainage.

Applications

Parameters

Installation Guidelines

1. Ensure the installation area is clean and level.

2. Determine the desired position for the drain and mark the location.

3. Cut an appropriate opening in the floor according to the drain size.

4. Connect the drain to the plumbing system using suitable connectors.

5. Adjust the height of the drain to match the floor thickness.

6. Secure the drain in place using the provided hardware.

7. Test the drain for proper water flow and make any necessary adjustments.
