Hot Sale 4 Inch Floor Drain Shower Europe Modern Style Floor Drain Grid Floor Drain
Product Introduction

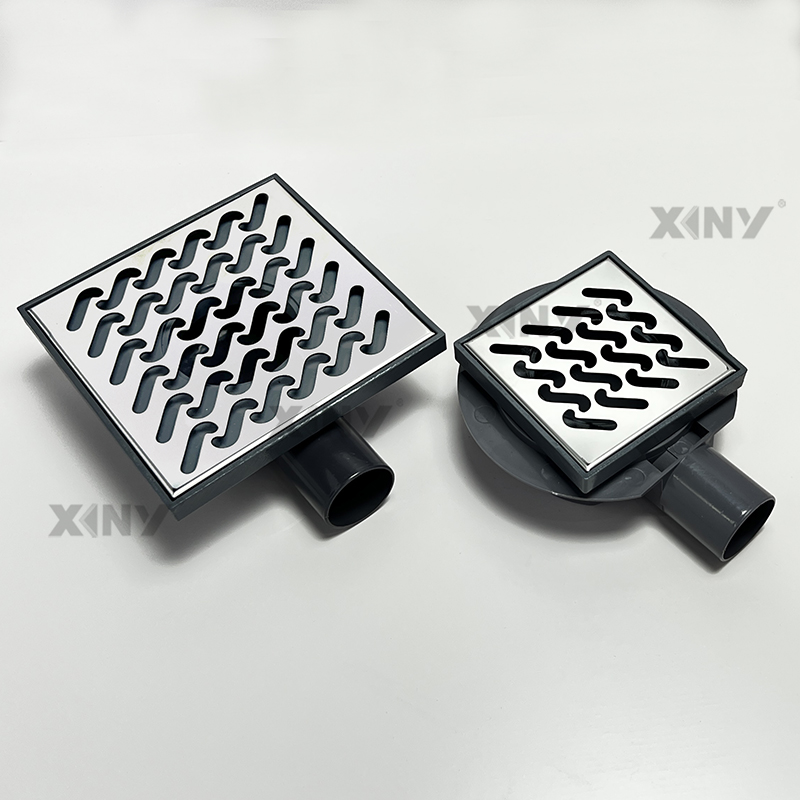

This product is primarily composed of a stainless steel drain cover, a plastic base, and a plastic base with a 360-degree adjustable drainage direction. It is available in sizes 10x10cm and 15x15cm, and comes with a 60mm plastic core. In addition to the standard patterns we offer, the pattern on the cover can also be customized according to the customer's requirements.
Compared to the previously shown stainless steel floor drain combined with a 360-degree adjustable plastic base, this two product serves the same function. The main difference is that the cover is made of stainless steel, while the other components are made of plastic. As a result, this product is more competitively priced, making it a suitable choice for customers with varying budget requirements.
Features
Specifications and Displacement:

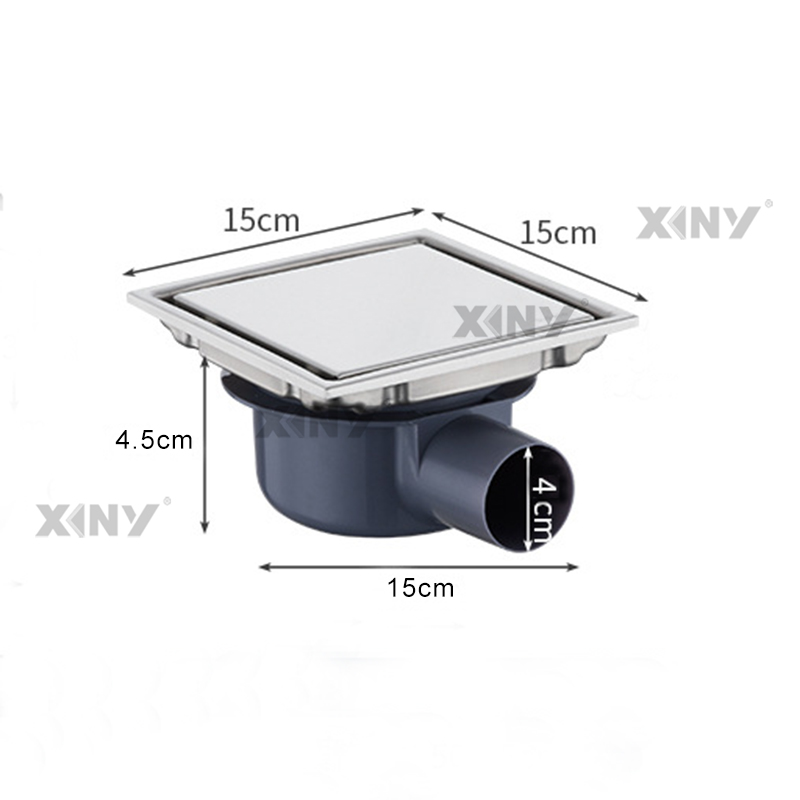

The square floor drain is available in sizes 10x10cm, 15x15cm, offering options to meet various drainage needs. The standard drainage outlet diameter is 60mm. The high displacement design effectively removes residual moisture from the bottom, ensuring smooth drainage.
Material and Process:
This floor drain is made from SS201 and SUS304 stainless steel, with a thickened brushed nickel panel that enhances both its durability and aesthetic appeal. The drain is manufactured using a special production process to ensure excellent corrosion and rust resistance, making it ideal for use in wet environments.
Areas of Application:
The high displacement design makes this shower floor drain suitable for bathrooms, kitchens, garages, swimming pools, basements, and other areas where drainage is required. It is capable of handling high-volume water flow effectively.
Cleaning and Maintenance:
After a period of use, the panel can be easily opened, allowing for the removal of the filter mesh. Simply wash the mesh with water for quick and easy cleaning, ensuring the drain maintains optimal drainage performance.
Description of Accessories:
The panel of the floor drain can be opened using hooks on both sides. The filter mesh effectively traps hair and particulate impurities, preventing blockages and ensuring long-term smooth drainage.
Applications
Our Stainless Steel Floor Drain finds versatile applications in:
● Residential bathrooms, showers, and kitchens.
● Commercial establishments such as restaurants, hotels, and shopping malls.
● Outdoor areas including patios, balconies, and driveways.
● Industrial settings such as warehouses and manufacturing facilities.
Parameters
| Item No. | XY010 |
| Material | ss201/SUS304 |
| Size | 10*10/15*15cm |
| Thickness | 1.2mm |
| Weight | 346g/728g |
| Color/Finish | Brushed/Polished/Black/Grey |
| Service | Laser Logo/OEM/ODM |
Installation Guidelines
1. Ensure the installation area is clean and level.
2. Determine the desired position for the drain and mark the location.
3. Cut an appropriate opening in the floor according to the drain size.
4. Connect the drain to the plumbing system using suitable connectors.
5. Adjust the height of the drain to match the floor thickness.
6. Secure the drain in place using the provided hardware.
7. Test the drain for proper water flow and make any necessary adjustments.
